ECO

rainmaster eco
Rainmaster Eco has 75% less energy consumption than comparable systems & is 70% quieter than similar devices

RAINMASTER
ECO

A unique, all-in-one, fully automatic pump system designed for light residential applications

The RAINMASTER ECO is a unique all-in-one, fully automatic pump system designed for light residential applications, like toilet flushing, washing machines, and garden watering.

The ECO is the ultimate in ease of installation and usage, delivering superior performance in the most economical way:

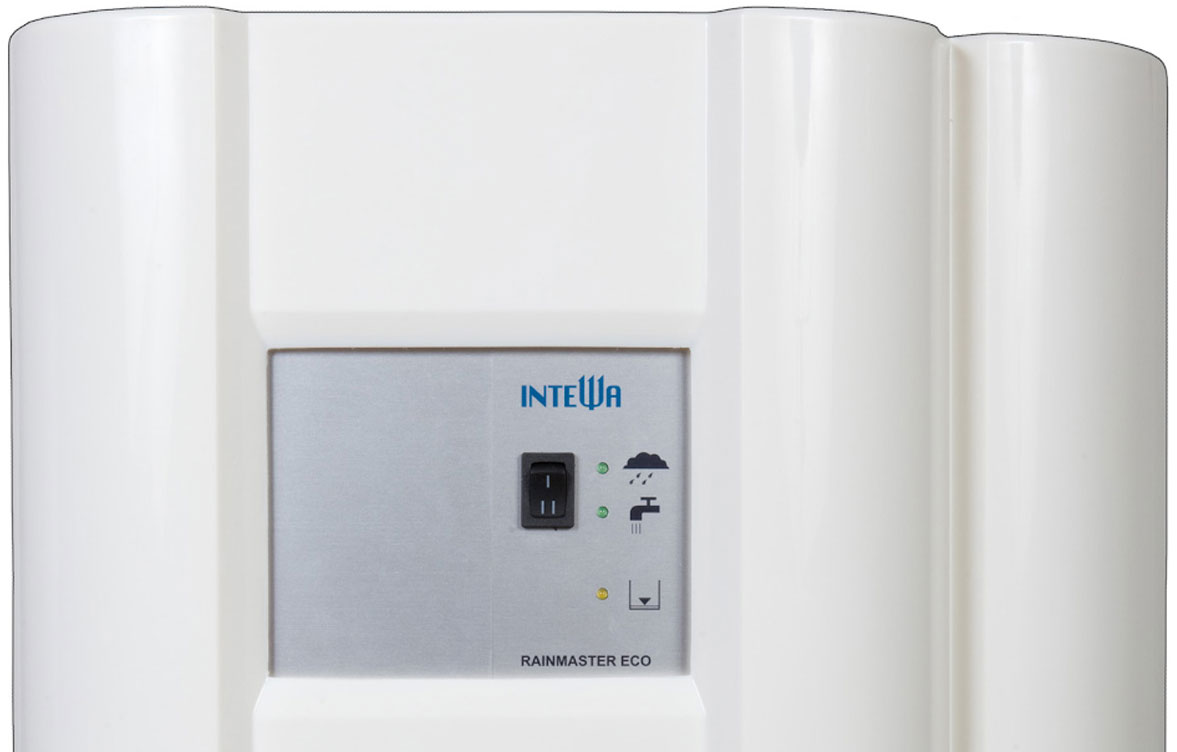

  • Easy push button selectors and optional tank level indicator
  • Automatic system: pump start/stop and city water back-up with backflow prevention
  • Flow for many light duties uses around the house
  • 75% less energy consumption than comparable systems
  • 70% quieter than similar devices

Pump, controller and float switch of the RAINMASTER Eco are run from a 24V low-voltage supply for low energy consumption and compatibility with solar power.

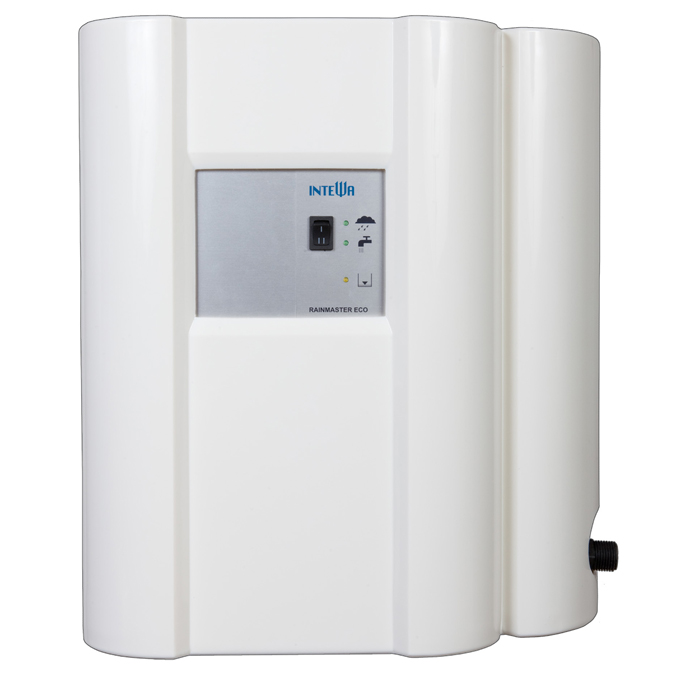

rainmaster eco product image

RAINMASTER ECO

Products & Accessories

RAINMASTER ECO

For Residential
and Commercial Applications


rainmaster favorit
Benefits Include
  • Easy to install and to use
  • All in one fully automatic system with city water back up
  • 75% less energy than comparable systems
Product Article Numbers
  • Rainmaster ECO:220090

RAINMASTER Accessories

  • RAINMASTER D24 fill level indicator
    and controller for mains water top-up:
    Fill level indicator for water tanks of a depth up to 3 m, Clear LED display from 0 bis 100 %, Supplemental supply point can be adjusted to any height, Valve outlet: 24 V DC / max. 15 W.
    Article Number: 220092
  • Supplemental supply unit 24V
    ½ inch with RAINMASTER D24
    Supplemental supply unit with fill status RAINMASTER D 24 complete with wall mounting clamp, funnel, discharge hose and mounting material
    Article Number: 220031
  • Supplemental supply unit 230V,
    ½ inch with floating switch
    Supplemental supply units 230 V 1/2" with floating switch complete with wall mounting clamp, funnel, discharge hose and mounting material
    Article Number: 220016
  • Floating suction
    with coarse filter 1 inch
    1" design for the RAINMASTER Favorit rainwater system incl. 2 1" brass grommets and stainless-steel hose clamps
    Article Number: 210130
  • Floating suction
    with coarse filter 1½ inch
    1 ½“ design for the RAINMASTER Favorit-SC duplex and triplex Includes 2 brass grommets and stainless-steel hose clamps
    Article Number: 210131
